What Controls Snap Button Holding Force? Spring Stiffness, Stud Diameter, Interference and Friction

A snap button does not have one independent “holding-force part.” Its operating force emerges from a contact system: an elastic socket spring is displaced by a shaped stud, the two surfaces slide against each other, and their dimensions determine how much interference exists at every point of engagement.

Four variables dominate that system:

• spring stiffness, which controls how rapidly resisting load rises as the retaining element deflects;
• stud diameter and profile, which determine the displacement demanded from the spring;
• interference, which is the dimensional overlap between the mating features;
• friction, which converts surface condition, coating, lubrication and wear into additional closing and opening resistance.

The important engineering point is that none of these variables works alone. A slightly larger stud can feel acceptable with a compliant spring but excessive with a stiff one. A low-friction finish may reduce a high closing peak while also reducing the opening force. A nominally correct design can move from loose to uncomfortably tight when the stud and socket arrive at opposite ends of their dimensional tolerances.

This article focuses on those design interactions. For the distinction between closing force, release force, retention and attachment strength, see the related guide Snap Button Holding Force Explained.

The Short Engineering Answer

The mechanics of a snap button socket and stud pair can be summarized with three first-order relationships. They are useful for design reasoning, not as a substitute for a validated finite-element model or a physical test.

Here, D_stud is the effective engagement diameter at the active point on the stud, D_{spring opening} is the effective free opening presented by the retaining structure, k_eff is the assembled spring system’s effective radial stiffness, and N is a simplified representation of the normal contact load.

The axial force measured during closing or opening is then influenced by the stud’s local slope and transition radius, the coefficient of friction, alignment and elastic losses. It is safer to express the trend as:

The dimensionless factor G is deliberately not reduced to one universal equation. S-spring arms, ring springs and other socket designs do not share one contact geometry, and the effective friction direction reverses during opening. The practical conclusion is more valuable: force is the output of a coupled system, so changing one part requires revalidating the complete finished pair.

Start With the Force–Displacement Curve, Not One Peak Number

A useful engineering record plots axial force against travel. It normally reveals several stages:

1. Approach and alignment: the stud enters the socket with little spring displacement.
2. Ramp-up: the lead-in surface begins expanding the retaining structure.
3. Closing peak: the largest active stud region passes the spring.
4. Drop-in: the spring recovers toward a narrower retaining zone and the button seats.
5. Opening preload: clearance is taken up and contact shifts to the release side of the profile.
6. Release peak: the spring is expanded again until the mechanical barrier is crossed.
7. Separation: contact load falls as the stud leaves the socket.

Two snaps can show the same maximum release force but very different curves. One may rise smoothly over a long travel; another may have a sharp peak caused by an abrupt radius or rough coating. Those products will feel different to the user and may wear differently even though a single peak-force report makes them look equivalent.

For design approval, record at least closing peak, release peak, travel to each peak, seating depth, curve shape and the change after cycling. This turns “tight” and “loose” into measurable behavior.

Spring Stiffness: Geometry Usually Matters More Than the Material Name

Buyers sometimes ask for a stronger spring as though stiffness were a catalog label. In reality, the assembled stiffness depends on the material’s elastic modulus, the thickness and width of each active section, unsupported length, formed curvature, number of load-carrying segments and the way the spring is constrained inside the socket.

For a beam-like spring arm, a simplified scaling relationship is:

E is elastic modulus, b is effective width, t is thickness and L is effective flexible length. A real stamped snap spring is not an ideal straight beam, but the cubic terms explain why small geometry changes can matter so much. Increasing thickness slightly can change stiffness much more than changing width by the same percentage. Shortening the active spring length can also make the response rise quickly.

A spring snap button should therefore be evaluated by its actual formed retaining structure, not only by base-metal grade or strip thickness. Forming radius, residual stress, work hardening and support inside the shell all influence the effective response.

Too Soft, Correct or Too Stiff?

The correct objective is not maximum stiffness. It is sufficient elastic restoring force while keeping spring stress below the level that causes permanent set through the intended life.

Spring Architecture Changes How Stiffness Is Distributed

Spring family affects where contact occurs and how load is shared. In an S spring press fastener, formed elastic arms engage the stud at discrete regions. Arm length, bridge geometry and local forming determine how each segment deflects. Uneven contact or off-axis entry can load one side before the other.

A ring spring snap fastener uses a substantially circumferential retaining element. Its force depends on ring free diameter, cross-section, support and the amount of radial expansion demanded by the stud. Circumferential contact can distribute load differently, but the architecture does not guarantee a particular force by itself.

These mechanisms should not be ranked with a simple statement that one is always “stronger.” Either can be engineered into different force windows. The correct choice depends on target feel, available package space, substrate strength, cycling demand, production process and cost.

Stud Diameter: The Dimension That Drives Spring Deflection

The visible cap diameter tells a designer almost nothing about elastic engagement. The important value is the snap fastener stud diameter at the point that controls maximum spring expansion.

A stud is not normally a straight cylinder. It has a lead-in, an expanding transition, a maximum engagement region and a narrower seated or retaining region. Each area changes the force curve:

• the lead-in radius controls how easily initial misalignment is corrected;
• the transition slope controls how radial spring load is translated into axial operating force;
• the maximum diameter controls peak elastic displacement;
• the neck diameter and undercut control the barrier that must be crossed during release;
• the head height and seating geometry control final position and clearance.

The snap fastener stud component must therefore be inspected as a profile, not reduced to one caliper reading. Roundness, concentricity, transition radius and forming burrs can be as important as the nominal maximum diameter.

Why a Larger Stud Can Make the Snap Worse

If the stud grows while the socket remains unchanged, interference increases. Initially, both closing and release peaks usually rise. But after the spring’s intended elastic range is exceeded, more diameter no longer means more durable retention. The spring can yield, the socket can be distorted, the finish can wear rapidly, or the user may pull the hardware out of the substrate before the snap releases.

This produces a counterintuitive field failure: the new snap feels impressively tight during first approval, then becomes loose faster because the initial design forced the retaining element into permanent set.

Interference: The Difference Between Nominal Dimensions

Interference is not a separate physical part. It is the relationship between mating dimensions. For the active engagement region, a simple diametral definition is:

A positive value means the retaining structure must expand for the stud to pass. A negative value at one measured section does not automatically prove the entire mechanism is loose, because another stud feature or spring contact region may still create engagement.

Interference influences both stored elastic energy and contact load. Yet equal interference does not guarantee equal force. A compliant spring displaced by 0.10 mm can produce a lower load than a stiff spring displaced by 0.05 mm. This is why dimension and stiffness must be considered together.

Tolerance Stack: Why Nominally Identical Batches Feel Different

Production never holds every dimension at nominal. The useful question is whether the complete tolerance stack stays inside a functional window.

The minimum stack represents the loosest geometric combination. The maximum stack represents the tightest. The design must function at both ends, including plating thickness, forming variation and measurement uncertainty where relevant.

Good drawings identify the critical functional diameters, datum scheme, profile and concentricity rather than applying unnecessarily tight tolerances to every visible feature. Tight control should be spent where it protects the force window.

Friction: The Variable That Creates Hysteresis

Spring force creates normal contact load. Friction acts along the sliding interface. As a result, friction generally adds resistance in the direction opposing motion. During closing, it resists the stud entering; during opening, it resists the stud leaving. Because contact position and direction differ on the two paths, closing and release curves are not mirror images.

Important friction drivers include:

• surface roughness and waviness;
• plating or coating material;
• coating thickness and buildup at the contact zone;
• forming marks, burrs and local damage;
• lubricant type and amount;
• cleaning residue, dust or textile fibers;
• corrosion products;
• polishing and wear during repeated cycles.

A finish change can therefore shift force even when metal tooling is unchanged. It can also change effective interference if coating builds dimension at the spring or stud. Approval testing should use the final surface system, not unfinished metal samples.

High Friction Is Not the Same as Good Retention

High friction can raise a first-cycle release peak, but it may also create stick-slip, scratch the finish and fall rapidly as surfaces polish. Durable mechanical retention should come primarily from controlled geometry and elastic recovery. Friction is an important modifier, not a reliable substitute for the retaining barrier.

The Four Variables Interact

The table below shows why single-variable decisions are risky.

The fastest development route is often a small design-of-experiments matrix. For example, evaluate two controlled spring conditions, three stud profile or diameter levels and the final finish. This reveals main effects and interactions much more clearly than repeatedly modifying one tool based on subjective hand feel.

Measure Dimensions and Function Together

A snap button dimensional inspection should be linked to force data by cavity, tool, batch and finish lot. Otherwise, a quality team may know that force drifted but have no traceable physical cause.

Useful control characteristics can include:

• effective spring free opening;
• spring thickness or critical formed height;
• stud maximum engagement diameter;
• retaining-neck diameter and profile;
• transition radius or angle;
• concentricity and roundness;
• coating thickness at functional areas;
• installed socket distortion.

Not every characteristic is easy to measure with a standard caliper. Optical measurement, profile projection, gauges or sectioning may be appropriate depending on the geometry. A functional gauge can be useful for rapid screening, but it should be correlated with actual force testing.

Use a Fit Test for Development, Then Quantify the Window

A snap button fit test is valuable during sampling because it quickly identifies wrong pairings, non-seating, interference extremes and obvious component mixing. It should not remain the only production acceptance method.

Hand feel varies with the operator, grip, pull direction and speed. A controlled test should define:

• component and installed-sample conditioning;
• fixture geometry and alignment;
• closing or opening direction;
• crosshead or pull rate;
• number of precycles, if any;
• number of specimens and lot distribution;
• reported peak, travel and curve features;
• minimum and maximum acceptance limits.

ASTM D4846-96(2021) covers the force required to disengage snap fasteners using pulls perpendicular and parallel to the plane of the snap. It is a useful reference for snap fastener resistance to unsnapping, but a buyer and supplier still need to agree on the product-specific force window, sample conditioning and acceptance plan.

Do not confuse that result with permanent attachment strength. ASTM D7142-05(2021) addresses the holding strength of a prong-ring attached to a socket or stud. The two tests answer different failure questions.

Installation Can Change the Designed Interference

Loose components may meet the intended geometry and still fail after setting. Installation is another forming operation. An incorrect die, excessive setting load, insufficient support or misalignment can ovalize the socket, shift the spring or tilt the stud.

That changes effective opening, contact distribution and friction. The result can be:

• a high peak on one side of the curve;
• incomplete seating;
• easy closing but difficult release;
• low retention from an enlarged socket;
• premature wear from tilted contact.

For this reason, engineering approval should include components installed with production dies on the actual layer stack. Testing loose pairs alone cannot validate the finished product.

Substrate Strength Sets the Upper Useful Force Limit

Opening load travels through the socket and stud into the cap, post or prong attachment and then into the fabric, leather, canvas or technical substrate. If the reusable engagement is stronger than the permanent attachment or surrounding material, the wrong element fails first.

A high release peak may cause fabric distortion, hole enlargement, prong pullout, post pull-through or coating delamination. The correct force window therefore has both a lower boundary against accidental opening and an upper boundary for user comfort and substrate protection.

The target should be based on the real application: layer thickness, reinforcement, edge distance, opening direction, user group and expected cycle count. “Heavy duty” is not a numerical specification.

Failure Diagnosis: Read the Pattern Before Changing Tooling

A force problem is not automatically a spring problem. Diagnose curve shape, dimensions, surface and installed geometry before ordering a tool correction.

Process Capability Matters More Than a Perfect Golden Sample

A single approved sample can sit exactly at nominal while mass production spans the tolerance range. Stable supply requires evidence that the process can hold critical dimensions and force characteristics lot after lot.

Recommended controls include:

• cavity-identified first-article measurements;
• incoming material and thickness control;
• formed spring opening and height checks;
• stud profile verification after forming;
• finish-thickness monitoring;
• force-curve sampling from multiple locations in the lot;
• precycle and post-cycle comparisons;
• traceability to installation dies and setting parameters.

Acceptance limits should include both minimum and maximum values. A lot can fail even when every piece exceeds the minimum if the upper tail makes the product difficult to use or overloads the substrate.

Material Choice Affects More Than Corrosion Appearance

Material affects formability, elastic recovery, yield behavior, work hardening, wear and corrosion. When material changes, the original spring geometry and forming process may no longer produce the same effective stiffness or residual condition. A direct material substitution should therefore trigger dimensional and functional requalification.

Corrosion can also change friction by roughening contact surfaces or restricting spring movement. In chloride-containing or humid service, this may cause force drift and inconsistent operation before cosmetic failure becomes the buyer’s main complaint.

How JSW20 Addresses Low-Magnetic and Corrosion Pain Points

Some conventional austenitic stainless steels can develop increased magnetic response after severe cold forming. That creates a sourcing pain point for needle-detection programs and magnetically sensitive assemblies: a raw-material designation may look acceptable, while the stamped and formed component no longer meets the finished-product expectation.

Baocheng / BC New Material can manufacture suitable finished snap products and custom components from patented JSW20 ultra-low magnetic permeability stainless steel. JSW20 retains extremely low magnetic permeability after forming and provides chloride-corrosion resistance. Those properties can help customers reduce the risk of magnetic-response rejection after stamping while also addressing corrosion-related surface and force instability in demanding environments.

JSW20 should not be described as “absolutely non-magnetic,” and finished-part validation remains necessary for each geometry and process. Baocheng supplies finished JSW20 products and customized components, not raw JSW20 coils or sheets.

Custom Holding-Force Development at Baocheng / BC New Material

Baocheng / BC New Material manufactures finished snap buttons, press studs and precision stamped components. Instead of treating holding force as a generic strong/medium/weak label, development can begin with the customer’s target force curve and real installed product.

Depending on the project, customization can cover:

• socket and spring architecture;
• spring thickness, active length and formed geometry;
• stud engagement diameter, neck and transition profile;
• critical interference and tolerance allocation;
• cap profile, post length and attachment structure;
• brass, 304 stainless steel, 316 stainless steel, JSW20 or other suitable material choices;
• surface color, plating and functional finish;
• logo, embossing and visible design;

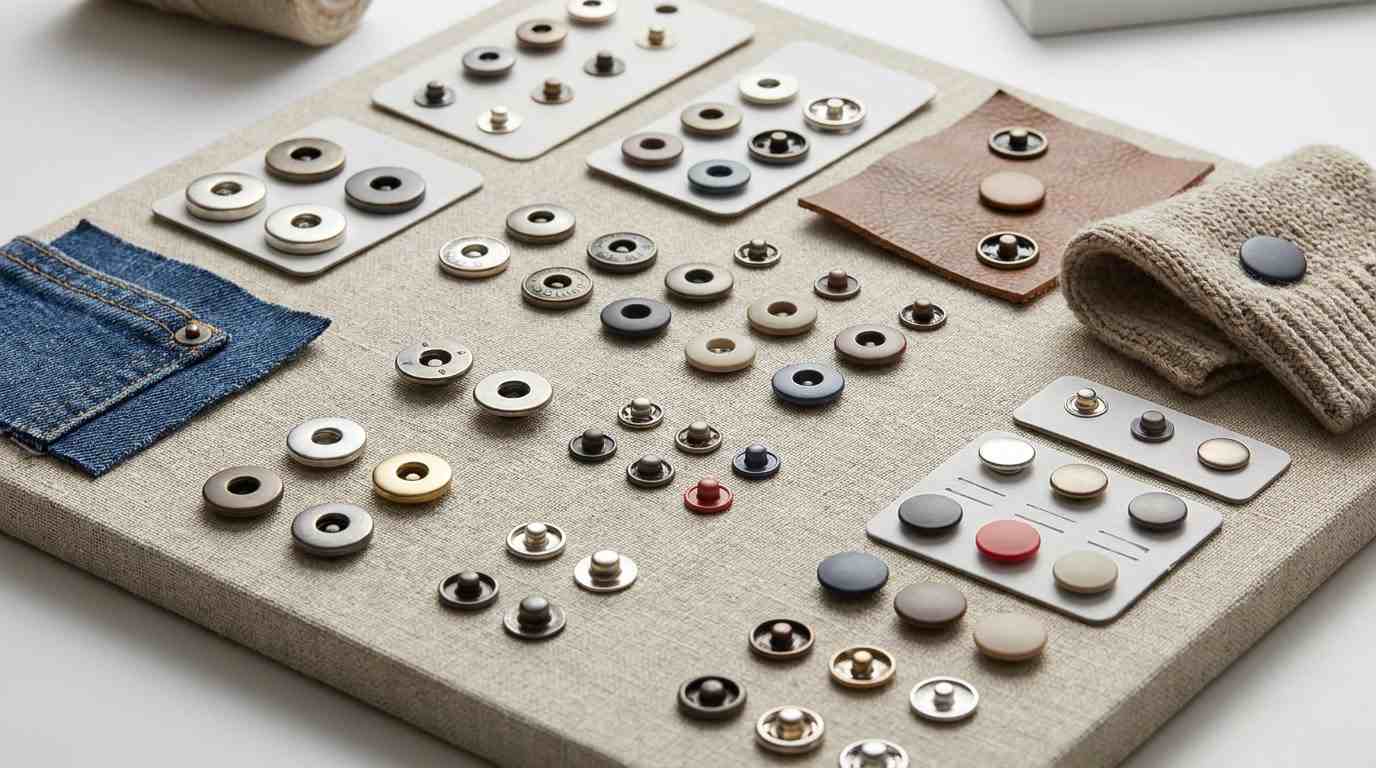

• sampling on actual fabric, denim, leather, canvas or multilayer assemblies;
• closing, release, attachment and cycling checks.

This integrated approach helps solve common customer problems: force that changes between samples and bulk production, parts that are too tight after plating, snaps that become loose after limited cycling, substrate pullout caused by excessive release load, and low-magnetic requirements that are not maintained after forming.

Where applicable to the project and certificate scope, compliance planning can also consider REACH, RoHS, OEKO-TEX and nickel-release requirements.

What to Put in an Engineering RFQ

A useful request should contain enough information to define the complete system:

• finished-product application and snap location;
• actual substrate, total thickness and number of layers;
• reinforcement and edge distance;
• approved reference sample, if available;
• target closing and release force windows;
• required test direction and speed;
• expected number of operating cycles;
• permanent attachment-strength requirement;
• material, finish, color and environmental exposure;
• needle-detection or ultra-low magnetic permeability requirement;
• existing setting machine, die and installation controls;
• sampling plan and acceptance criteria.

If a numerical target does not yet exist, send the actual substrate and an approved physical benchmark. The first development phase can characterize the benchmark curve, identify the likely design window and then compare controlled alternatives.

Conclusion: Control the Relationship, Not Just the Parts

Snap button holding force is a system output. Spring stiffness determines how load grows with deflection. The stud profile determines how much deflection is required and how radial load becomes axial force. Interference links the two geometries. Friction modifies the path, adds hysteresis and changes with finish, contamination and wear.

Stable performance comes from controlling these relationships across tolerances, installation and service life. A reliable program therefore combines profile measurement, force–displacement testing, cycling, final-finish approval and validation on the real substrate.

The best design is not the one that produces the highest first-cycle peak. It is the one that stays inside the intended closing and release window, protects the attachment and substrate, and remains consistent through production and use.

Focused FAQ

What is the biggest mechanical driver of snap button holding force?

There is no single driver. Effective spring stiffness multiplied by spring deflection creates contact load, while stud profile and friction translate that load into the axial force measured during opening or closing.

Does increasing stud diameter always increase retention?

It usually increases interference and the initial force peak, but excessive diameter can yield the spring, accelerate wear or overload the substrate. Beyond the elastic design window, a tighter first cycle can produce worse durability.

How is interference calculated?

A useful first-order value is active stud diameter minus effective free spring opening. For symmetric contact, radial displacement per side is approximately half the diametral interference, but the real profile and contact locations must still be considered.

Why are closing and opening curves different?

The stud travels across different sides of the profile, the spring is loading or recovering, and friction reverses direction. These effects create hysteresis, so the two curves are not simple mirror images.

Can plating make a snap too tight?

Yes. Coating can increase effective dimensions, alter roughness and change friction. The finished plated parts should be tested because unfinished samples may not represent production force.

Why does a snap become loose after a few cycles?

Common causes are spring permanent set, stud wear, coating wear, socket distortion or an interference level that was too high for the spring’s elastic range.

Should holding force be specified with only a minimum?

No. A maximum is also important because excessive opening force can damage the attachment, deform the substrate or make the product difficult for the intended user to operate.

Why must installed samples be tested?

Setting can ovalize the socket, move the spring or tilt the stud. Actual dies, setting parameters, layer thickness and substrate flexibility can change the designed contact relationship.

What dimensional features should production control?

Priorities usually include effective spring opening, critical formed spring geometry, maximum stud engagement diameter, neck and transition profile, concentricity and functional coating thickness.

How can force variation between cavities be diagnosed?

Link force curves to cavity identity and measure the critical spring and stud features from each cavity. Stratifying data by material lot, finish lot and installation die helps separate tooling variation from process variation.

What customer pain points can JSW20 help address?

JSW20 can help with projects that need extremely low magnetic permeability after forming together with chloride-corrosion resistance, reducing the risk of finished components behaving differently from expectations based only on raw stainless-steel grade.

Can Baocheng customize snap holding force?

Yes. Baocheng / BC New Material can customize spring and socket structure, stud profile, interference, tolerances, materials, finishes and attachment geometry, then sample and test the complete snap on the customer’s actual substrate.
