How to Choose Tarp Grommets for Canvas, PVC and Coated Fabrics

How to Choose Tarp Grommets for Canvas, PVC and Coated Fabrics

A tarp grommet transfers tension from rope, hooks, bungees or fasteners into a flexible sheet. The metal part is only one element of that load path. Canvas carries force through woven yarns, PVC tarpaulin carries it through a coated reinforcement scrim, and other coated fabrics combine a textile base with a coating whose flexibility, adhesion and surface behavior vary widely. One universal grommet specification cannot serve all three materials reliably.

Correct selection combines the tarp construction, finished hem thickness, punched-hole quality, flange area, barrel length, washer structure, base metal, finish and setting process. If any one of these elements is mismatched, the grommet can rotate, cut the coating, separate yarns, split during rolling or pull through the edge even when the loose metal component meets its dimensional drawing.

Canvas, PVC and Coated Fabrics Do Not Fail the Same Way

Choosing Grommets for Canvas Tarps

Canvas is woven, compressible and sensitive to yarn movement. Punching removes load-carrying yarns, while a blunt punch pushes them aside and leaves an irregular opening. The grommet must clamp enough surrounding weave to stop progressive separation without crushing the fabric into a weak, hard ring.

Buyers evaluating canvas tarps with grommets should provide fabric composition, basis weight, weave, coating or wax treatment, fold construction and compressed hem thickness. “Canvas” includes light cotton covers, heavy polyester industrial tarps and treated outdoor fabrics with very different behavior. The final stack, not the generic fabric name, determines the barrel length and setting window.

Use a wide support area

For loaded canvas edges, canvas tarp grommets need a flange and washer large enough to spread bearing stress across multiple yarns. A narrow flange can pull between yarns even when the metal remains intact. A wider washer supports the back side and limits rotation, especially at corners and tie-down points.

Spur or toothed washers can improve engagement in thick woven assemblies, but tooth geometry must match the stack. Long, sharp spurs can cut yarns or penetrate beyond the reinforcement. Short teeth may not engage a dense fold. Approve the washer through section inspection and pull testing rather than assuming that more aggressive teeth always produce higher strength.

Account for moisture and compression

Natural-fiber canvas changes thickness and flexibility with moisture. A joint set tightly on dry material can become highly compressed when fibers swell, while a loose joint can develop after repeated wet-dry cycling. Polyester canvas is more dimensionally stable but still compresses beneath the flange. Condition samples to the intended environment before final approval.

Use a clean round punch that cuts the weave without long pulled threads. Reinforcement webbing, a folded hem or a bonded patch should extend well beyond the flange. The grommet must sit inside a uniform area rather than across the edge of a tape or seam.

Choosing Grommets for PVC Tarpaulins

PVC tarpaulin usually combines a polyester reinforcement scrim with flexible PVC coatings. The scrim carries most tensile load, while the coating protects it, seals the surface and contributes to dimensional stability. The punched hole must remain centered in a reinforced area so the flange clamps both coating and structural yarns.

When sourcing grommets for tarpaulins, specify total coated weight, scrim construction, finished thickness, fold layers, reinforcement tape and welding method. Two PVC sheets with the same thickness can differ substantially in yarn density, plasticizer level and coating adhesion. These differences change hole growth and pull-out behavior.

Protect the coating and internal scrim

An oversized hole removes useful scrim. An undersized hole bunches PVC into the barrel and raises setting force. Excessive press travel cuts a compressed circular path around the washer, while insufficient travel allows the component to move and fret the coating. A smooth support die and a controlled final set height protect the visible surface and the structural layer.

Welded hems must be continuous through the grommet zone. Contamination, insufficient heat or poor pressure creates internal separation, leaving the grommet clamping layers that do not act together. Test production-intent welds after cooling and conditioning; a visually flat seam is not proof of structural continuity.

Clear PVC needs additional reinforcement

A clear tarp with grommets often uses transparent PVC sheet with limited or no woven reinforcement. Continuous polymer can creep around a concentrated load and develop stress whitening or a growing slot. A large flange and washer reduce bearing pressure, but a bonded or welded reinforcement patch is the decisive protection for demanding tie points.

Products described as heavy duty clear plastic tarps with grommets still require confirmation of actual sheet thickness, reinforcement, low-temperature behavior and tie-down load. “Heavy duty” is a marketing description, not a mechanical acceptance criterion. Specify pull-out load, displacement and failure mode on conditioned samples.

Choosing Grommets for Other Coated Fabrics

PU, acrylic, silicone and specialty coatings differ in hardness, surface energy, heat sensitivity and adhesion to their textile base. A reinforcement tape that bonds to PVC may not bond to a low-surface-energy coating. A hot punch suitable for one synthetic textile can embrittle or distort another. Material-specific process trials are mandatory.

First identify the base textile and coating on both sides. Record whether the fabric is welded, bonded or sewn, and whether solvents, cleaning agents, fuel, oil, ultraviolet exposure or high temperature are part of service. Then select the grommet material and finish against that environment.

For multilayer coated fabrics, inspect for interlayer slip beneath the washer. A component may look tight while only the outer layer is clamped. Sectioned samples and cyclic loading reveal whether the layers remain stable after repeated tension.

Choose the Inside Diameter from the Attachment Hardware

Inside diameter must clear the actual rope, hook, bungee end, cable tie or rigid fastener without unnecessary movement. Include coating thickness, knot geometry and dimensional changes from moisture. An opening that barely accepts the hardware can abrade it; an oversized opening requires a larger punched hole and removes more load-carrying tarp material.

A tarp eyelet should be specified by a drawing that identifies finished inside diameter, barrel outside diameter, flange outside diameter, barrel length, wall thickness and washer dimensions. Trade-size numbers vary between suppliers and regions. Millimeter dimensions with named measurement features prevent tool and part mismatches.

Confirm the clear opening after setting. Rolling the barrel can reduce the usable diameter or form an inward lip. The installed geometry, not the loose-part label, determines whether the attachment passes cleanly.

Match Barrel Length to the Finished Tarp Stack

Barrel length must pass through the punched stack and retain enough material to form a complete roll. A short barrel under-sets, rotates and releases the washer. An excessive barrel buckles, folds, splits or produces a sharp edge. Both conditions weaken the tarp.

Measure compressed thickness after folding, welding, bonding or sewing. Include reinforcement patches and webbing. Take measurements across several production lots because coatings, weld pressure and textile weight create variation. The approved barrel must form correctly across the full normal range without operators compensating through uncontrolled press pressure.

If canvas and PVC versions share an inside diameter but have different stacks, assign separate component codes unless testing proves that one barrel length has a safe window for both. Common opening size does not create common setting geometry.

Select the Washer for the Failure Mode

A plain washer spreads load and supports a smooth roll. It works well with PVC and reinforced coated fabrics when diameter and hardness match the grommet. A toothed or spur washer adds mechanical grip in thick canvas or webbing. A neck washer guides the barrel and can improve concentricity in selected assemblies.

The washer hole must support the roll without scraping the finish or obstructing formation. Outside diameter must be large enough to distribute load but must not overlap a seam edge or thickness step. Washer hardness also matters: an excessively soft washer deforms, while a hard mismatched washer can force the barrel to split.

Washerless designs reduce component count but provide less back-side support. Use them only for qualified light-duty or specifically engineered constructions. Cost reduction does not justify removing the washer from an approved heavy-load design.

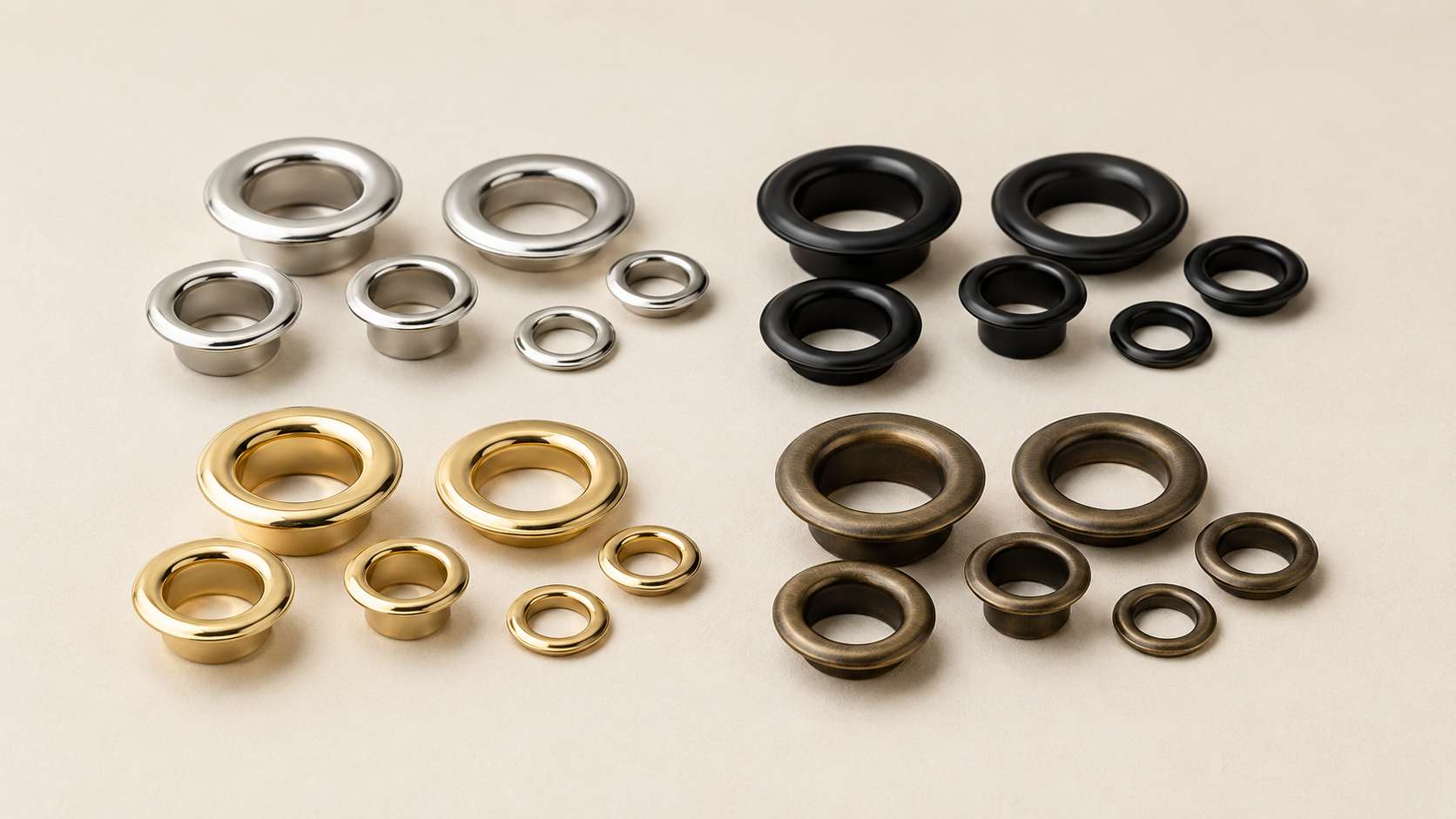

Material and Finish Selection

Plated iron

Plated iron offers economical forming and a wide finish range for protected indoor use and short service programs. Once plating is scratched during setting or field use, exposed iron can rust and stain the tarp. Outdoor approval requires a defined coating system and corrosion test tied to the target life.

Brass

Brass combines good formability with useful inherent corrosion resistance. It is a proven choice for canvas, covers and outdoor textile products. Composition, temper, wall thickness and washer matching still control roll quality. Tarnish and appearance limits should be included when the metal remains visible.

304, 316 and JSW20 stainless steel

304 stainless steel suits many general outdoor environments. 316 provides stronger performance in chloride-bearing conditions. Both require clean forming tools and suitable surface treatment because transferred iron contamination can create rust-colored marks.

Patented JSW20 stainless steel adds ultra-low magnetic permeability after forming while also providing resistance to chloride-containing environments. In BC New Material’s comparative test context, its corrosion performance is slightly better than ordinary 316, and its price remains close to 316. The finished-part advantages are detailed later in this guide.

Installation Tooling Is Part of the Specification

Guides explaining how to add grommets to tarp often show only the physical sequence. Production approval requires more: punch diameter and sharpness, upper and lower die profiles, press alignment, final set height, component orientation and a reaction plan for defects.

Production lines setting tarpaulin eyelets need tools matched to the selected flange, barrel, washer and material stack. A die for a similar nominal size can contact the wrong radius, damage the finish or roll the barrel asymmetrically. Lock the tool identification in the process sheet and qualify replacements before use.

Set samples at minimum, nominal and maximum proposed conditions. Inspect flange flatness, washer seating, rotation, final height and roll symmetry. Cut cross-sections through several orientations. Choose the lowest setting that creates a complete stable roll without cutting the substrate. Higher pressure after that point reduces durability.

Do Not Use Kit Labels as Engineering Specifications

A tarp grommet kit is useful for repair, sampling or low-volume work, but its retail size name does not define industrial component tolerances, metal grade or batch consistency. Buyers should separate the convenience of a kit from the requirements of recurring production.

A product described as a heavy duty tarp with grommets must translate “heavy duty” into flange area, washer structure, barrel wall, material, installed pull-out force, cyclic loading and corrosion performance. A larger-looking part can still fail if it cuts the substrate or sits too close to the edge.

For mass production, approve component drawings, matched dies, production-intent samples and a control plan. For field repair, confirm that the kit part is compatible with the remaining tarp material and that the damaged area has sufficient reinforcement and edge distance.

Spacing and Reinforcement Control Field Durability

Grommet spacing determines the unsupported edge length and the load per tie point. Closer spacing distributes load only when the mounting system uses the available holes with reasonably even tension. A tarp with many grommets but only four tight tie-downs remains a four-point load system.

Base spacing on tarp size, material construction, wind exposure, mounting hardware and expected movement. Corners receive load from two directions and need a larger reinforced area, sufficient center-to-edge distance and separate validation. Avoid holes at fold terminations, webbing ends and weld intersections.

Reinforcement must extend beyond the flange far enough to transfer load into sound material. Canvas benefits from folded hems or webbing; PVC uses continuous welded folds or compatible reinforcement patches; specialty coatings require a joining method proven on the exact surface.

Testing the Installed Tarp-Grommet System

Record failure mode with every pull result. Washer release points to setting or component matching. Yarn separation points to canvas reinforcement. Coating whitening and a growing slot point to plastic deformation. A tear that runs directly to the edge points to insufficient edge distance. The failure location guides the correct redesign.

How BC New Material Customizes Tarp Grommets

BC New Material supplies finished tarp grommets and develops the component around the customer’s actual canvas, PVC or coated-fabric assembly. Engineering input includes attachment hardware, inside diameter, flange area, barrel length, wall thickness, washer structure, compressed stack, reinforcement, hole position, setting equipment and service environment.

Customization covers one-piece and washer-backed designs, plain, neck, toothed or spur washers, project-specific dimensions, iron, brass, 304, 316 and patented JSW20 stainless steel, plus colors and surface treatments selected for appearance and exposure. Samples and tooling are evaluated on the production-intent tarp rather than on loose metal alone.

BC New Material supports drawing review, tolerance definition, sample development, dedicated tooling, trial setting, dimensional inspection, section analysis, pull-out requirements, cyclic tests, corrosion requirements and project-specific packing. Matching components and dies through a controlled specification reduces variation across production lines and supplier lots.

For canvas, the engineering focus is yarn support, washer engagement and thickness variation. For PVC, it is coating protection, scrim retention and welded-hem integrity. For specialty coated fabrics, it is compatibility among the coating, reinforcement method and setting process. This material-specific approach produces a stable finished joint.

JSW20 Finished Grommets for Demanding Tarp Programs

BC New Material offers finished grommets and customized components made from patented JSW20 austenitic stainless steel. After drawing, punching and rolling, JSW20 can retain ultra-low magnetic permeability, with relative permeability as low as approximately 1.003 under applicable test conditions. Finished-part verification closes the gap between a non-magnetic incoming material certificate and the actual condition after cold forming.

The near-non-magnetic condition supports needle-detection workflows and magnetically sensitive production environments. It is useful when tarps, textile covers, equipment bags or related products contain multiple formed metal components that could otherwise create false alarms. BC New Material supplies JSW20 finished parts and customized components, not raw coil.

JSW20 also resists chloride-containing environments. Its corrosion performance is slightly better than ordinary 316 stainless steel in BC New Material’s comparative test context, while its price is close to 316. Buyers therefore gain near-non-magnetic performance, strong corrosion resistance and practical cost control in one finished-component option.

Applicable documentation can include the JSW20 patent, RoHS, REACH, nickel-release and relevant OEKO-TEX or Intertek-supported reports according to the supplied component, finish and agreed project scope. These documents support qualification; the final tarp assembly still requires installation and mechanical validation.

Final Selection Checklist

1. Identify the substrate: canvas composition and weave, PVC scrim and coating, or specialty textile and coating system.
2. Define the finished stack: folds, welds, webbing, patches, layer count and compressed-thickness range.
3. Define the attachment: rope, hook, bungee, tie or fastener size, movement and expected load.
4. Specify the component: inside diameter, flange, barrel, wall, washer, material and finish on a drawing.
5. Specify placement: center spacing, edge distance, corner reinforcement and tolerances.
6. Lock the tooling: punch, upper die, lower die, press interface and validated setting window.
7. Approve installed samples: inspect both faces and sections, then test edge and corner coupons.
8. Set environmental requirements: corrosion, wet-dry, cold, heat or chemical exposure based on real service.
9. Control production: component lots, set height, visual limits, mechanical audits, traceability and packing.
