Curtain Rod and Eyelet Compatibility: How Much Clearance Is Needed?

A Curtain Rod Fitting Through the Eyelet Does Not Mean the Two Parts Are Compatible

A curtain manufacturer can place a rod through an eyelet during sampling and conclude that the dimensions fit. That simple check proves only one thing: the rod is smaller than the eyelet opening.

It does not prove that the curtain will slide smoothly.

It does not prove that a plated rod will still fit after coating variation.

It does not prove that a heavy curtain will move without binding, that a metal eyelet will remain quiet, or that thousands of production components will maintain the same clearance.

The engineering relationship is therefore not:

Rod diameter < eyelet diameter = acceptable.

The more useful question is:

How much controlled clearance remains after the actual rod diameter, eyelet inside diameter, finish thickness, dimensional tolerances, curtain weight and operating angle are all considered?

This distinction is critical when comparing different curtain grommet sizes for a production program.

First Define What “Clearance” Means

For a circular curtain rod passing through a circular eyelet, the simplest dimensional relationship is the difference between the finished eyelet inside diameter and the finished rod outside diameter.

For example, if the finished eyelet opening measures 40 mm and the rod measures 30 mm:

Because that clearance exists around both sides of a centered rod, the theoretical radial clearance is half of the diametral clearance:

This terminology matters because one supplier may say “5 mm clearance” and mean radial clearance, while another may mean a 5 mm difference between the two diameters.

Those are very different fits.

B2B drawings should therefore specify actual eyelet ID and rod OD rather than using the word “clearance” alone.

There Is No Single Universal Clearance for Every Curtain

A fixed industry-wide number would be convenient, but curtain systems vary too much for one clearance to suit every product.

A lightweight residential curtain running on a smooth 25 mm rod behaves differently from a heavy hotel blackout curtain on a 32 mm rod.

Large decorative drapery grommets may also be intentionally oversized to create a particular fold and hardware appearance.

As a practical prototype starting point for many conventional decorative curtain systems, manufacturers can think in terms of clearance bands rather than one mandatory figure.

Diametral Clearance	Typical Behavior	Main Risk
About 3–5 mm	Relatively controlled fit with limited eyelet movement	Can become sensitive to rod coating, ovality, alignment and heavy curtain loading
About 6–10 mm	Useful starting region for balancing movement and control in many medium-size systems	Must still be validated for noise, rod joints and actual curtain weight
About 10–15 mm	Greater freedom of movement and tolerance accommodation	More eyelet tilt, impact movement and possible metal-on-metal noise
Above about 15 mm	Very loose relationship between rod and opening	Greater visual movement, deeper tilt and less controlled fold geometry

These ranges are not universal standards or automatic acceptance criteria. They are engineering starting regions for prototyping. The final value must be qualified with the actual rod, eyelet, curtain weight and expected movement.

Why Very Small Clearance Can Feel Smooth on the Table but Fail on the Window

A close-fitting sample can feel extremely refined when one loose eyelet is moved by hand along a perfectly straight rod.

The completed curtain is a different mechanical system.

Once installed, the eyelets are not always perfectly perpendicular to the rod. The curtain folds cause individual rings to tilt. The weight of the fabric pushes the eyelet against the upper rod surface. Pulling from one side can rotate the rings further.

As soon as an eyelet tilts, the effective opening available to the rod becomes smaller.

This is one of the key reasons a nominal 1 or 2 mm dimensional difference may be inadequate even though the rod technically passes through the eyelet.

Tilt consumes clearance

Imagine a relatively thick eyelet whose opening is only slightly larger than the rod.

When both axes are perfectly aligned, the rod passes easily.

As the eyelet rotates relative to the rod, the available projected opening decreases. The front and back edges of the eyelet can begin contacting different sides of the rod.

Friction rises rapidly.

The thicker the eyelet assembly and the smaller the clearance, the more important angular freedom becomes.

Heavy Curtains Need Clearance Under Load, Not Only Clearance at Rest

Curtain weight changes the contact between the two components.

With a light sheer curtain, each eyelet carries relatively little vertical force.

A wide blackout panel with lining, however, can place much greater force on every contact point.

As the load increases:

• the eyelet sits more firmly on the rod;
• friction becomes more noticeable;
• small surface defects matter more;
• coating wear can increase;
• a tight dimensional fit becomes less forgiving.

This is why a manufacturer asking what size grommet do i need should not make the decision using rod diameter alone.

Finished curtain mass and eyelet count influence how much load each ring carries.

The Rod Is Not Always the Diameter Printed on the Packaging

For production compatibility, nominal rod diameter is not enough.

The actual outside diameter can vary because of:

• tube manufacturing tolerance;
• powder coating;
• paint thickness;
• decorative plating;
• local seam geometry;
• out-of-round tubing;
• different suppliers or production lots.

A “30 mm” rod does not necessarily measure exactly 30.00 mm at every position.

If an eyelet system has generous clearance, these variations may have little effect.

If the design operates close to the minimum functional clearance, coating and roundness variation can determine whether one production batch moves smoothly and another feels tight.

Measure the Finished Rod, Not the Bare Tube

If a rod receives powder coating or another relatively substantial surface finish, compatibility testing should use the completed production rod.

The relevant dimension is the final outside diameter after all coatings.

The same principle applies to the eyelet.

When buyers ask how to measure grommet diameter, the measurement should be made on the finished component in the area that actually contacts the curtain rod.

Do not use a pre-finish stamping dimension if plating, paint or another coating changes the functional opening.

Inside Diameter Is the Critical Eyelet Dimension for Rod Fit

Decorative curtain eyelets are often sold using one nominal size designation, but that label can be ambiguous.

It may refer to:

• inside opening diameter;
• outside flange diameter;
• nominal product family;
• hole-punch size;
• a supplier-specific series number.

For curtain rod compatibility, the most important dimension is the finished functional inside diameter.

This is why buyers researching how to identify grommet size should request an actual dimensional drawing rather than relying on the commercial size name alone.

How to Measure the Eyelet Opening Correctly

For larger curtain rings, digital calipers provide a practical production-development measurement method.

Measure the inside opening in at least two directions.

For example:

• horizontal ID;
• vertical ID;
• another measurement after rotating the component approximately 90 degrees where appropriate.

If the results differ, the opening may not be perfectly round.

For compatibility calculations, the minimum functional inside diameter is often more important than the largest measurement because the smallest region creates the restriction.

Production quality control should also distinguish between a loose component and an installed component. Pressing or snapping the ring into the curtain header can sometimes change geometry slightly.

Measure the Rod in More Than One Position

The same principle applies to the rod.

Do not take one measurement near the end and assume the entire rod is identical.

Check multiple positions, especially:

• near each end;
• near brackets;
• around decorative joints;
• at telescopic overlaps;
• at visibly heavier coating areas.

For a tight-clearance system, record both the typical diameter and maximum observed outside diameter.

The Worst-Case Clearance Matters More Than the Nominal Clearance

Suppose the nominal eyelet ID is 40.0 mm and the nominal rod OD is 32.0 mm.

The nominal diametral clearance is 8.0 mm.

But assume production tolerances are:

• eyelet ID: 40.0 ± 0.5 mm;
• finished rod OD: 32.0 ± 0.5 mm.

The smallest acceptable eyelet could be 39.5 mm.

The largest acceptable rod could be 32.5 mm.

The worst-case diametral clearance therefore becomes:

The opposite tolerance combination would create 9.0 mm.

So a design called “8 mm clearance” may actually operate across a 7–9 mm production window.

This is the number that manufacturing engineering should evaluate.

A Clearance Specification Without Tolerances Is Incomplete

This becomes especially important when the eyelet and rod come from different suppliers.

The eyelet manufacturer controls one tolerance.

The curtain-rod supplier controls another.

If neither supplier understands the complete assembly, both components can individually pass inspection while the final system performs poorly.

The curtain brand or assembly manufacturer must therefore own the functional interface.

Too Little Clearance Produces Four Characteristic Problems

1. High sliding resistance

The most obvious symptom is increased force when opening and closing the curtain.

Instead of sliding, the eyelets may repeatedly tilt and release.

2. Catching at rod joints

Telescopic rods are especially sensitive because one tube overlaps another.

The transition can create a step larger than the nominal rod diameter.

A tightly fitted eyelet that moves smoothly over the main tube may stop at this joint.

3. Accelerated surface wear

High contact pressure concentrates rubbing on a smaller region of the rod and eyelet.

Decorative coatings can polish or scratch faster.

4. Uneven folds during movement

If some eyelets bind more than others, the curtain stops redistributing uniformly along the rod. Certain folds compress while others remain extended.

Too Much Clearance Creates a Different Failure Pattern

More clearance reduces the probability of binding, but unlimited clearance is not desirable.

Greater eyelet tilt

A large opening around a small rod allows individual rings to rotate farther.

The top of the curtain becomes less constrained and can appear more mobile.

Metal-on-metal impact noise

With metal eyelets, excess clearance can allow the ring to move vertically or laterally before contacting the rod.

When pulling direction changes, the eyelet can strike the opposite side of the rod.

This produces a sharper sound than continuous sliding contact.

Less controlled fold geometry

The rod can occupy more positions within the eyelet opening. That changes where the curtain is supported and allows additional variation in fold depth.

More visible misalignment

Oversized openings can make slightly different eyelet angles more obvious across an otherwise straight curtain header.

There Is a Difference Between Sliding Clearance and Visual Clearance

Engineering may determine that an 8 or 10 mm diametral difference provides good movement.

Design may still reject the combination because the rod appears visually too small inside the ring.

Conversely, a designer may prefer a nearly filled opening because it looks more substantial.

That smaller gap can create an unacceptable manufacturing window.

This is why the final choice is a compromise between:

• sliding function;
• appearance;
• tolerance capability;
• noise;
• wear;
• cost.

Metal and Plastic Eyelets Do Not Need Identical Clearance

A hard metal eyelet on a metal rod behaves differently from a plastic ring on the same rod.

Plastic can provide greater local compliance and usually produces softer impact noise. Depending on polymer and geometry, a small amount of deformation may help the component pass minor variations.

Metal is much less compliant.

That gives metal excellent dimensional stability but makes the geometry of the interface more important.

With metal-to-metal systems, excessively small clearance can create noticeable friction and coating wear, while excessive clearance can create more audible impact.

Therefore the target clearance should be qualified for the actual materials, not copied automatically from a plastic ring design.

Two-Piece Curtain Eyelets Add Another Dimensional Variable

Many decorative curtain systems use two-piece rings, and curtain eyelets and washers or mating rear components can change the final installed geometry.

The front and rear pieces must close around the fabric header while maintaining the intended inside opening.

If the material stack is too thick, the two halves may not fully seat.

If assembly force distorts the ring, the installed ID can differ from the loose-component ID.

This means curtain manufacturers should measure finished assemblies, not only incoming hardware.

A Curtain Grommet Kit Can Hide Dimensional Assumptions

A retail or sampling curtain grommet kit may bundle rings, installation components and instructions around a common curtain configuration.

Similarly, a grommet kit for curtains can be useful during early development.

For B2B mass production, however, the manufacturer still needs to verify the dimensional assumptions behind the kit.

Questions include:

• What rod diameter was the eyelet designed around?
• What is the actual finished inside diameter?
• What curtain-header thickness can the ring accept?
• What dimensional tolerance does the supplier maintain?
• Does the installation method change the opening?

A kit that performs well on one residential sample is not automatically a production specification for a hotel or commercial curtain program.

How to Apply Grommets Without Changing the Functional Clearance

Guides explaining how to apply grommets to curtains often focus on hole positioning and installation.

For manufacturing, installation must also preserve the functional ID.

Potential problems include:

• press tooling contacting the inside edge;
• ring halves snapping together unevenly;
• fabric trapped between mating surfaces;
• off-center setting;
• excessive force deforming thin metal sections.

After assembly, the curtain manufacturer should use a go/no-go gauge, caliper check or representative rod fixture to verify the opening.

The Telescopic Rod Joint Is Often the Real Minimum-Clearance Point

One of the most important practical observations is that the largest obstruction on a curtain rod may not be the main tube.

On telescopic rods, the eyelet must pass over the transition where the smaller tube enters the larger one.

Depending on design, the joint can include:

• a step in outside diameter;
• a plastic sleeve;
• a raised seam;
• a decorative collar.

The eyelet therefore has to clear the maximum local envelope, not just the nominal tube OD.

This is a frequent reason why a curtain passes the dimensional calculation but feels poor in real installation.

Rod Brackets Can Matter More Than Another Millimeter of Clearance

Even a generously sized eyelet cannot pass through a fixed support bracket unless the curtain system is specifically designed for it.

Large windows often require center supports to prevent rod deflection.

The curtain can then operate only within the section defined by those brackets unless another carrier system is used.

This is not a grommet-diameter defect.

It is a system-architecture constraint.

B2B development should therefore verify the complete hardware path before optimizing the final millimeters of clearance.

Rod Deflection Changes Alignment on Wide Windows

A long rod carrying a heavy curtain may deflect slightly between supports.

That changes the angle at which individual drapery eyelets contact the rod.

A clearance that feels sufficient on a short laboratory sample can become less forgiving on a long installed rod if deflection and fold angle combine.

For wide or heavy window treatments, full-length validation is preferable.

Wear Testing Should Examine Both Surfaces

Compatibility is not finished once the curtain slides smoothly on day one.

Repeated operation can change the interface.

On metal systems, inspect:

• polishing of the eyelet ID;
• scratching of the rod;
• wear-through of decorative coatings;
• metal burr development;
• transfer of coating material.

On plastic systems, inspect:

• internal polishing;
• ovalization;
• parting-line wear;
• stress whitening;
• surface debris.

The appropriate clearance is one that continues to work after realistic repeated movement, not merely during initial assembly.

Noise Testing Should Use the Final Curtain Weight

For premium interiors, noise can be part of the product-quality specification.

A loose metal ring on a bare rod does not reproduce the acoustic behavior of a finished curtain.

Testing should use:

• final curtain weight;
• actual eyelet spacing;
• actual rod material and finish;
• representative pulling speed;
• the real number of eyelets.

Increasing clearance may reduce binding but simultaneously increase impact noise.

The optimum is therefore not necessarily the largest possible opening.

A Practical Development Method for Selecting Clearance

Step 1: Establish the real maximum rod diameter

Measure finished rods from representative production samples, including coatings and high spots.

Step 2: Establish the minimum installed eyelet ID

Measure the actual curtain assembly rather than only loose hardware.

Step 3: Calculate worst-case diametral clearance

Use minimum eyelet ID minus maximum rod OD.

Step 4: Check angular movement

Tilt the curtain naturally rather than holding every ring perpendicular to the rod.

Step 5: Test telescopic joints and surface transitions

The largest local obstruction often determines real compatibility.

Step 6: Hang the full curtain

Use production-equivalent weight and header reinforcement.

Step 7: Cycle the curtain repeatedly

Evaluate sliding force, sound, wear and fold redistribution.

Step 8: Freeze the dimensional window

Only after successful functional validation should procurement establish final eyelet and rod tolerances.

Use a Go/No-Go Rod Gauge for High-Volume Production

For large production programs, repeatedly measuring every eyelet with calipers can be inefficient.

A practical quality-control tool is a representative cylindrical gauge.

A GO gauge can represent the maximum acceptable functional rod envelope.

If the installed eyelet cannot move over that gauge under the approved test condition, the opening is functionally too small.

Depending on the project, a second gauge can help control excessively large openings.

This transforms an abstract dimension into a quick production check.

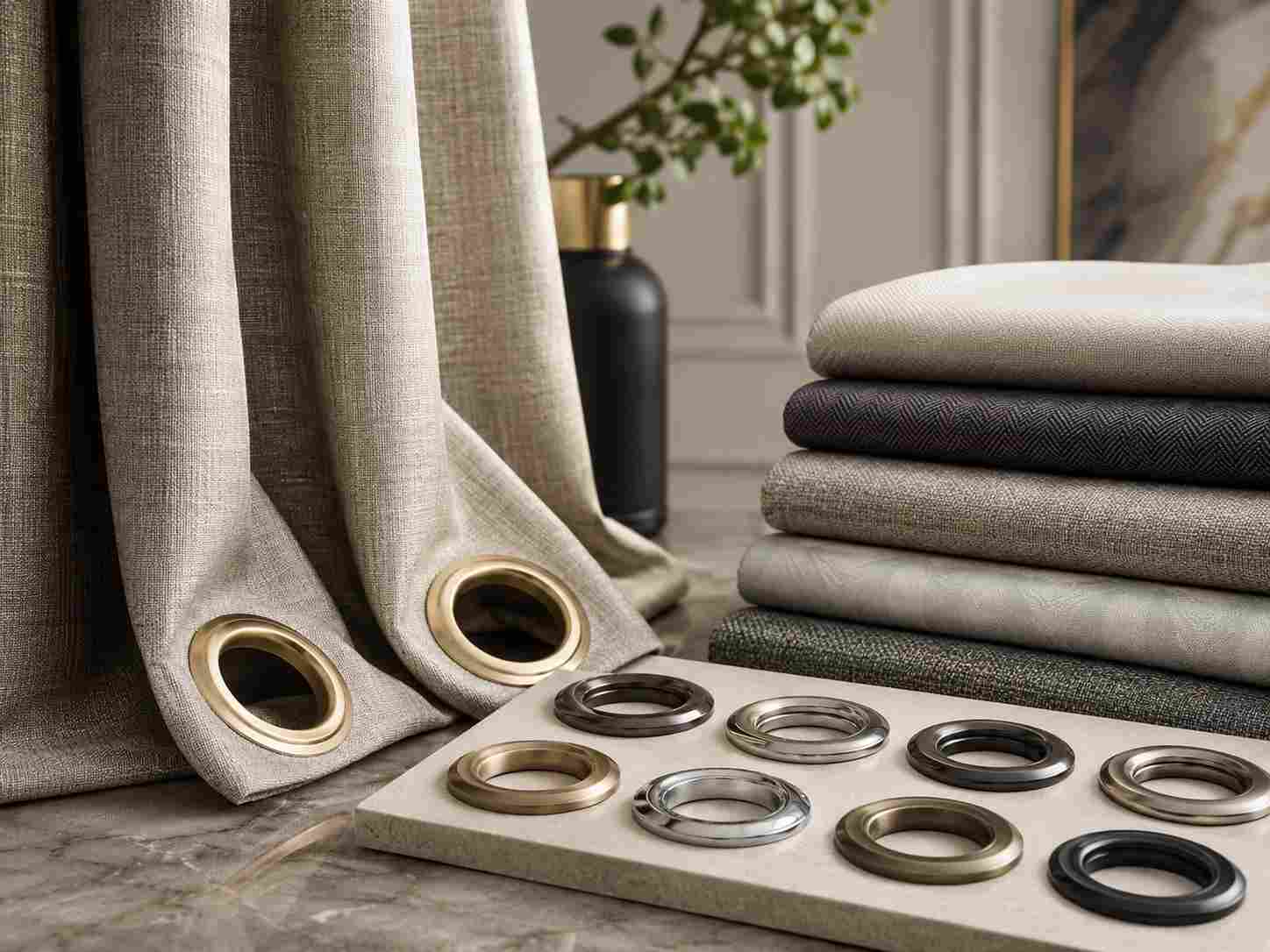

Replacement Eyelets Need the Same Compatibility Check

Replacing a damaged curtain ring with another component that appears visually similar can create a new compatibility problem.

The replacement may have:

• a smaller actual ID;
• a thicker internal edge;
• a different profile;
• different installed distortion;
• a different surface coefficient of friction.

Replacement components should therefore be checked against the actual rod before a full curtain is reworked.

When Should a Custom Curtain Eyelet Be Considered?

A standard ring is usually the most economical choice when it provides the required functional window.

Custom development becomes more valuable when:

• the rod uses a nonstandard diameter;
• design requires a specific visible flange size;
• the available standard ID creates either excessive noise or excessive friction;
• the curtain is unusually heavy;
• a premium metal finish must match the rod;
• the buyer needs tighter dimensional consistency than a generic decorative ring provides.

BC New Material supports customized metal eyelet and grommet components for B2B projects using stainless steel, brass, zinc alloy and other project-specific materials.

For curtain applications, custom development can coordinate functional ID, flange dimensions, material thickness, front profile, backside structure and decorative finish around the customer's actual curtain rod and header construction.

What a B2B Curtain Eyelet Drawing Should Specify

A useful production drawing should avoid ambiguous expressions such as “fits 30 mm rod.”

Instead, define measurable dimensions.

Recommended information includes:

• minimum and maximum finished eyelet inside diameter;
• flange outside diameter;
• component height;
• base material;
• surface finish;
• installed header thickness range;
• mating washer or rear-ring specification where applicable;
• maximum finished rod outside diameter;
• required functional clearance or gauge condition;
• appearance and burr requirements on the inner sliding surface.

Compatibility Should Be Defined as a Window, Not a Single Nominal Number

This is the central engineering principle.

If the design team says:

“The eyelet is 40 mm and the rod is 32 mm,”

they have described only the nominal geometry.

A production-ready specification needs to know:

What is the smallest acceptable installed eyelet?

What is the largest finished rod?

What happens when the ring tilts?

Can it pass the telescopic joint?

How does it behave under the full curtain weight?

Does additional clearance create unacceptable noise?

Does the combination still work after repeated sliding?

Those questions define the real compatibility window.

The Correct Clearance Is the Smallest Gap That Remains Reliable Across the Entire Production System

For curtain rod and eyelet compatibility, more clearance is not automatically better and tighter fit is not automatically more premium.

Too little clearance increases sensitivity to coating thickness, rod ovality, eyelet tilt, curtain weight and telescopic joints.

Too much clearance increases eyelet movement, metal impact noise and variation in the way the folds sit around the rod.

For many conventional decorative systems, a mid-range diametral clearance can provide a practical prototype starting point, but it should never replace complete-product validation.

The engineering objective is to find the smallest functional clearance that remains reliable at the worst combination of production tolerances and real-use conditions.

Measure the finished rod—not the drawing alone.

Measure the installed eyelet—not only the loose component.

Calculate worst-case clearance.

Test the complete curtain under load.

Check joints, brackets, coatings, tilt, noise and wear.

Once these factors are controlled, curtain eyelet size becomes a repeatable engineering specification rather than a trial-and-error decision made during final installation.

Focused FAQ

1. How much larger should a curtain eyelet be than the curtain rod?

There is no universal value. As a prototype approach, many conventional systems can be evaluated across several millimeters of diametral clearance, but the final requirement depends on rod tolerance, eyelet tilt, curtain weight, materials, coating and rod joints.

2. What is diametral clearance?

Diametral clearance is the finished eyelet inside diameter minus the finished rod outside diameter. A 40 mm eyelet on a 32 mm rod therefore has 8 mm diametral clearance.

3. Is radial clearance the same as diametral clearance?

No. For centered circular parts, radial clearance is half the diametral difference. An 8 mm diametral difference corresponds to approximately 4 mm theoretical clearance on each side.

4. Can the curtain eyelet fit too tightly around the rod?

Yes. A close fit can bind when the eyelet tilts or when rod coating, ovality or local joints increase the effective outside dimension.

5. Can too much clearance be a problem?

Yes. Excessive clearance can increase eyelet tilt, visual movement and metal-on-metal impact noise, and can make the folds less mechanically controlled.

6. Should rod coating thickness be included in the measurement?

Yes. Compatibility should be calculated using the completed production rod after paint, powder coating, plating or other functional surface finishes.

7. Why does my eyelet slide on the rod but catch at one position?

Telescopic joints, sleeves, seams, decorative collars or local coating buildup can create a larger effective diameter than the main rod tube.

8. Does a heavy curtain need more clearance?

Heavy curtains increase contact force and can make tight systems more sensitive to friction and tilt. Whether additional clearance is required should be confirmed through full-weight hanging tests.

9. Should I measure the eyelet before or after installation?

The installed dimension is the most relevant functional measurement because snapping or pressing the component into the curtain header can sometimes alter its geometry.

10. What information should a buyer provide for custom curtain eyelets?

Provide the finished rod OD and tolerance, required eyelet ID, curtain weight, header thickness, eyelet material, finish, rod finish, expected joint geometry, quantity and preferably actual rod and curtain samples.

#CurtainEyelets, #CurtainGrommets, #CurtainRod, #DraperyHardware, #EyeletSize, #CurtainHardware, #MetalEyelets, #CurtainManufacturing
