smartphone mid-frame

Product Overview

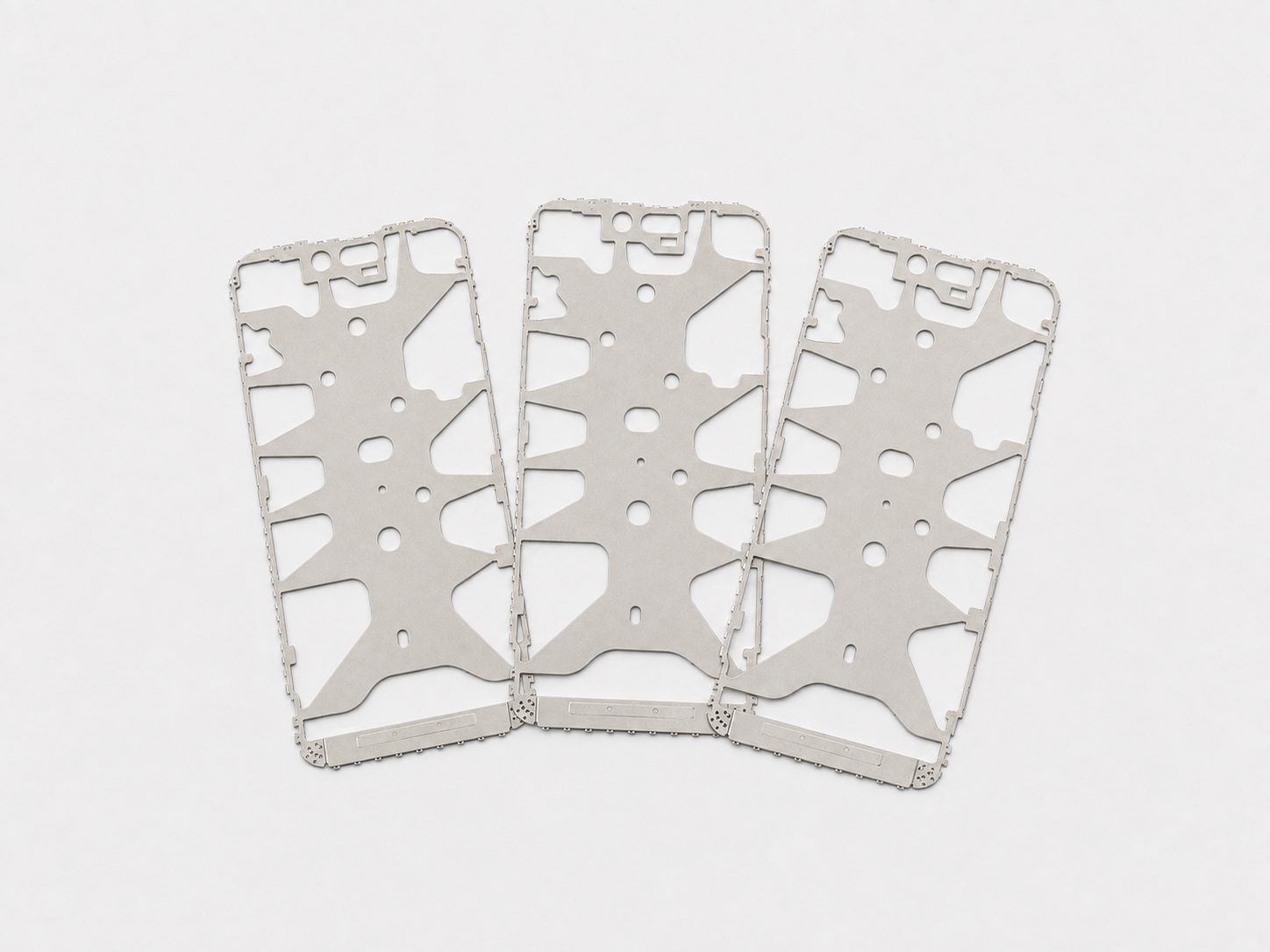

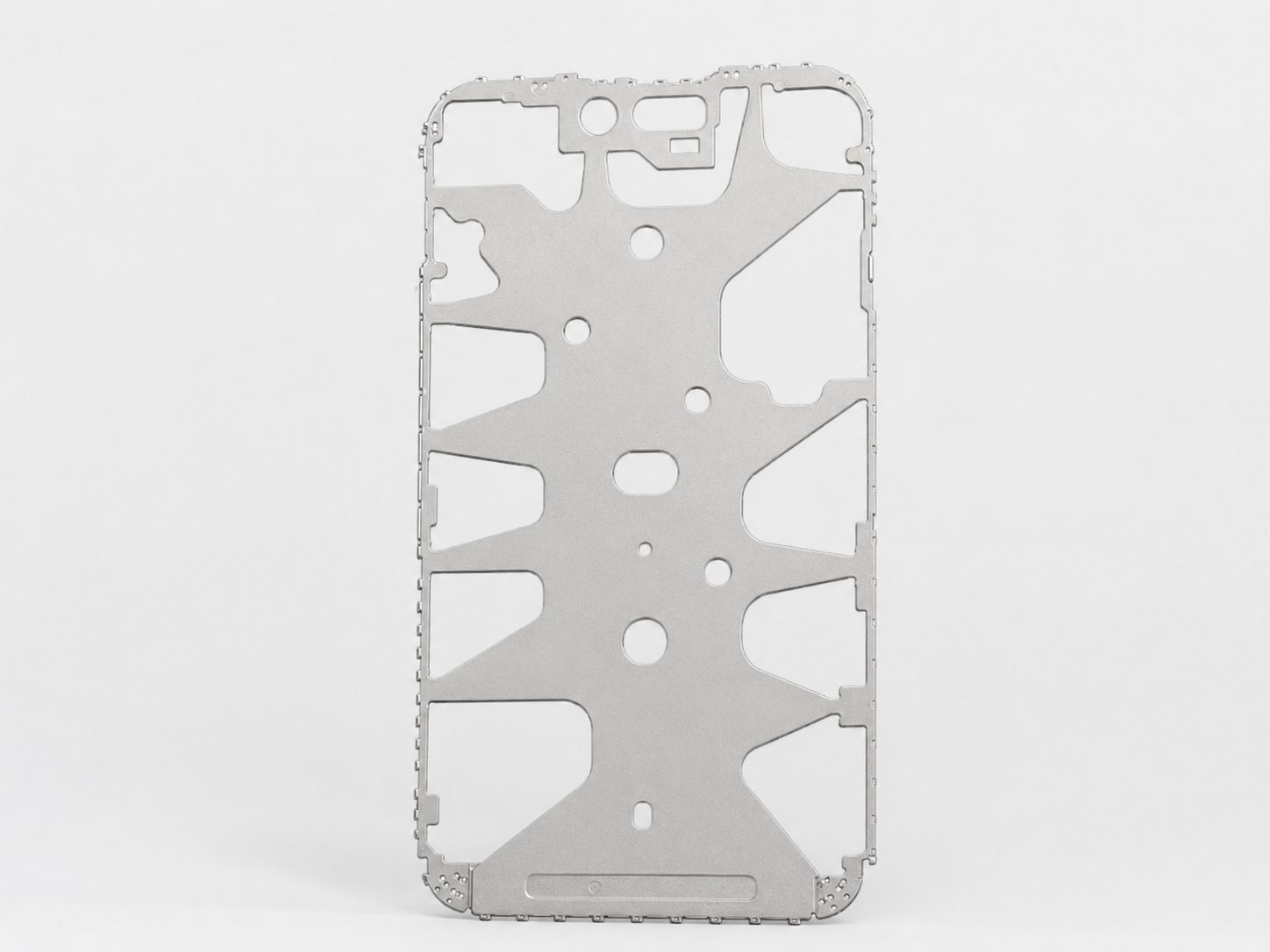

A cell phone mid frame is one of the key structural components inside a modern smartphone. Positioned between major assemblies such as the display, internal electronic modules and rear housing, the mid frame helps create a stable mechanical platform for the entire device. Depending on the smartphone architecture, it can provide mounting locations for the display module, PCB, battery, camera, connectors, speakers, antennas, shielding components and other internal parts.

Although the exact structure varies from model to model, the primary purpose of a smartphone middle frame is to control the relative position of multiple components inside a very limited space. As smartphones become thinner and internal layouts become more compact, dimensional accuracy, flatness, hole position, local forming accuracy and assembly consistency become increasingly important.

For this reason, a mobile phone middle frame should not be treated as a simple sheet metal component. Its geometry can directly affect display assembly, camera positioning, PCB installation, battery clearance, connector alignment and final enclosure fit. BaoCheng New Materials provides customized metal mid-frame components according to customer drawings, samples and specific assembly requirements.

Why the Smartphone Middle Frame Matters

Modern smartphones contain a large number of components within an extremely compact enclosure. The phone middle frame acts as an important structural reference between many of these components. Even relatively small deviations in critical dimensions can accumulate through the assembly stack and eventually influence the final fit of the phone.

For example, inaccurate positioning around display support areas may influence screen assembly. Incorrect mounting positions can create difficulties when installing PCB assemblies, cameras or connectors. Insufficient flatness can also affect mating surfaces, adhesive areas or the relationship between the internal structure and the outer housing.

Therefore, the design of a cell phone mid frame normally needs to balance several requirements at the same time:

• Dimensional accuracy
• Overall flatness
• Hole and opening position accuracy
• Local structural strength
• Component installation clearance
• Assembly datum consistency
• Weight and material thickness
• Surface condition
• Compatibility with surrounding components

This combination of structural and assembly requirements makes the smartphone middle frame a highly customized component rather than a universal standard part.

Structural Applications of a Cell Phone Mid Frame

Display Module Support and Positioning

One important application of the cell phone mid frame is providing mechanical support and positioning references for the display assembly. In many smartphone designs, the display occupies almost the entire front surface of the device, leaving very limited space for structural support.

The mid-frame structure can help define the position of the display relative to the rest of the housing. Critical edges, openings, mounting areas and locating features must therefore maintain good dimensional consistency.

If the smartphone middle frame has excessive distortion or dimensional deviation, the resulting assembly stack can influence screen alignment, enclosure gaps or adhesive bonding areas. For this reason, flatness and positional accuracy are important considerations when manufacturing customized mid-frame components.

Mainboard and Electronic Component Mounting

Another major application of a mobile phone middle frame is supporting internal electronics. Smartphone mainboards contain processors, memory, communication modules, power-management components and many other electronic devices. These assemblies must remain accurately positioned inside the phone.

Depending on the customer's structural design, a phone middle frame may include openings, mounting areas, positioning points or clearance zones corresponding to the mainboard and surrounding components.

The relationship between these features is important because smartphone assembly allows very little unnecessary space. Poor hole-position accuracy or incorrect local dimensions may interfere with screws, connectors, shielding covers, flex cables or other components during final assembly.

Battery Compartment and Internal Space Management

Battery packaging is another important consideration in smartphone structural design. As manufacturers attempt to increase battery capacity while keeping devices thin, the available internal space becomes increasingly valuable.

The cell phone mid frame can help define the structural boundary around the battery and separate it from neighboring electronic components. The surrounding geometry must provide sufficient clearance without unnecessarily increasing the overall size or thickness of the device.

For a customized smartphone middle frame, dimensional control around the battery area is especially important because battery dimensions, adhesive areas, flex cables and neighboring modules all contribute to the final space allocation.

Camera Module Positioning

Modern smartphones may contain several rear and front camera modules, including wide-angle, telephoto, macro and depth-sensing systems. These components require stable mechanical positioning.

A mobile phone middle frame may contain precisely positioned openings or structural areas corresponding to the camera assembly. The location of these features must match the smartphone housing and camera-module arrangement.

Accurate positioning is important because the camera module, decorative camera housing and external cover openings must align correctly after assembly. As camera systems become larger and more complex, the structural accuracy of the phone middle frame becomes increasingly important.

Connector, Speaker and Functional Module Integration

Smartphones contain many secondary modules in addition to the mainboard and battery. These may include charging connectors, speakers, microphones, vibration motors, fingerprint modules, antenna components and various flexible circuits.

The cell phone mid frame helps organize these components within the internal architecture. Openings and clearance areas must correspond to the exact location of the surrounding modules.

In high-density smartphone layouts, even a small positional deviation may create interference between neighboring parts. Precision manufacturing therefore helps ensure that the smartphone middle frame fits correctly with the customer's complete internal assembly.

Mechanical Reinforcement and Structural Stability

In addition to locating components, a mobile phone middle frame can contribute to the mechanical stability of the smartphone structure. Smartphones experience repeated mechanical loads during everyday use, including handling pressure, pocket compression, vibration and accidental impact.

The structural design of the phone middle frame helps distribute these loads through the internal chassis. Local ribs, openings, reinforcing areas and material distribution may therefore be designed according to the mechanical requirements of the specific smartphone.

At the same time, increasing strength by simply increasing material thickness is not always desirable because smartphone manufacturers must control both device weight and thickness. This creates a design balance between strength, stiffness, material thickness and manufacturing feasibility.

For customized metal mid-frame projects, BaoCheng evaluates the manufacturability of the customer's design while considering the required material thickness, geometry, flatness and critical dimensions.

Precision Alignment Between Smartphone Components

One of the most important functions of a cell phone mid frame is establishing consistent positional relationships between different parts of the phone.

A smartphone is assembled from numerous components manufactured by different processes and often by different suppliers. The middle frame can serve as an important mechanical reference during final assembly.

Typical alignment relationships may include:

• Display to internal chassis
• Mainboard to mounting features
• Camera module to housing opening
• Battery to surrounding structural boundaries
• Connector to external housing opening
• Shielding component to PCB area
• Speaker and microphone to acoustic openings
• Rear housing to internal supporting structure

Because these components interact with each other, dimensional tolerance should not be evaluated only on individual features. For a custom smartphone middle frame, the relationship between critical dimensions and assembly datums is often more important than simply controlling every dimension to the tightest possible tolerance.

EMI Grounding and Shielding Integration

The mobile phone middle frame is primarily a mechanical structural component, but in certain smartphone architectures it may also participate in the grounding or shielding design of the device.

For example, selected metal contact areas may interface with conductive components, grounding points or EMI shielding structures around sensitive electronics. The exact electrical function depends entirely on the customer's device architecture and should be considered together with material selection, surface treatment and contact design.

The phone middle frame should therefore not automatically be considered an EMI shield by itself. Instead, it can form part of the overall mechanical and electrical integration strategy when the customer's design requires conductive contact or grounding between different components.

For applications with strict magnetic sensitivity requirements, material characteristics may also become an important consideration. BaoCheng can discuss material options according to the customer's structural, corrosion-resistance, forming and magnetic-performance requirements.

Thermal Management Integration

Heat management is becoming increasingly important as smartphones use higher-performance processors, faster charging systems and more powerful communication hardware.

The cell phone mid frame can form part of the mechanical platform onto which thermal-management materials or components are assembled. Depending on the design, graphite sheets, thermal interface materials, heat-spreading structures or other thermal-management components may be positioned in relation to the middle frame.

This makes surface position, flatness and available installation space important. The smartphone middle frame itself should not automatically be considered the primary heat sink, because thermal-management strategies vary significantly among smartphone designs. However, its structural geometry can directly influence the placement and contact condition of thermal-management components.

Water-Resistant and Sealing Structure Support

Many modern smartphones use adhesive, foam, gasket or sealing structures to improve resistance to moisture and dust. The mobile phone middle frame can provide important mating or supporting surfaces for these structures.

Consistent surface geometry is important where sealing materials interact with the frame. Excessive local deformation, uneven surfaces or dimensional variation can change compression conditions or assembly gaps.

For this reason, the phone middle frame should be evaluated together with the complete housing design rather than as an isolated metal component. Critical sealing-related surfaces should be identified clearly on the customer's drawing so that manufacturing controls can focus on the areas that influence final assembly performance.

Thin and Compact Smartphone Designs

The continuing demand for thinner and lighter smartphones places additional requirements on middle-frame components. Designers need sufficient structural rigidity while minimizing unnecessary material and internal volume.

A thin cell phone mid frame requires good control of material thickness, stamping deformation and overall flatness. As component thickness decreases, deformation during manufacturing can become more difficult to control.

At the same time, a smartphone middle frame may contain many closely positioned openings and functional areas. Tooling design and forming sequence therefore need to consider not only individual dimensions but also the cumulative effect of punching, forming and subsequent processing.

For high-volume customized projects, stable process control becomes especially important because repeatability across production batches directly affects downstream automated assembly.

Material Considerations for Mobile Phone Middle Frames

Material selection for a mobile phone middle frame should consider more than mechanical strength alone. The appropriate material depends on the design geometry, required thickness, forming complexity, corrosion-resistance requirement, surface treatment and functional requirements of the final device.

Stainless steel is suitable for many precision stamped electronic components because it can provide a useful combination of strength, corrosion resistance, dimensional stability and manufacturability. For projects with additional magnetic-performance requirements, special material selection may also be considered.

However, material selection should always be confirmed according to the actual drawing and application. BaoCheng does not recommend choosing a material only from a general material name. Thickness, temper, forming behavior and post-forming performance can all influence the final phone middle frame.

Important Manufacturing Requirements for a Smartphone Middle Frame

When developing a customized cell phone mid frame, several manufacturing characteristics deserve particular attention.

Flatness

Overall flatness can influence display installation, internal component clearance and housing assembly. Thin stamped components may be especially sensitive to residual stress and deformation during manufacturing.

Hole and Opening Position

A smartphone middle frame may contain multiple openings corresponding to cameras, connectors, screws, speakers, cables or electronic modules. Their relative positions often matter more than the appearance of an individual opening.

Critical Dimensional Tolerance

Not every dimension requires the same tolerance. Critical assembly dimensions should normally receive the highest level of process control, while non-critical areas can use economically reasonable tolerances.

Edge and Burr Control

Because a mobile phone middle frame is assembled close to batteries, flexible circuits, wiring and electronic components, uncontrolled burrs or sharp edges may create assembly risks. Edge quality should therefore be considered during tooling and process development.

Surface Condition

Surface condition can influence appearance, bonding, conductive contact and compatibility with subsequent finishing processes. Requirements should be specified according to the function of each area rather than applying one requirement indiscriminately to the entire phone middle frame.

Custom Cell Phone Mid Frame Development

Smartphone middle frames are highly model-specific components. Differences in display dimensions, PCB layout, battery size, camera arrangement, connector position and housing structure mean that one design generally cannot be directly used for another device.

BaoCheng therefore supplies the cell phone mid frame as a customized component based on customer drawings, samples and technical requirements rather than as a standard off-the-shelf product.

For new projects, useful information normally includes:

• 2D drawings and 3D models
• Material specification
• Material thickness
• Critical dimensions and tolerances
• Flatness requirements
• Surface treatment requirements
• Critical assembly datums
• Areas requiring burr control
• Functional contact or grounding areas
• Prototype quantity
• Expected production volume

Understanding these requirements early makes it easier to evaluate the manufacturability of the smartphone middle frame and identify potential risks before tooling and mass production.

Prototype and Mass Production Considerations

Prototype development and mass production have different priorities. During prototype development, the focus is often on verifying geometry, assembly relationships and functional fit. During mass production, process stability, repeatability and production efficiency become equally important.

For a customized mobile phone middle frame, prototype evaluation can help confirm:

• Whether critical openings align correctly
• Whether the frame fits the surrounding housing
• Whether internal modules can be installed without interference
• Whether overall flatness meets assembly requirements
• Whether edge conditions are acceptable
• Whether the selected material behaves correctly during forming

After the phone middle frame design has been validated, manufacturing controls can be established around the dimensions and characteristics that have the greatest influence on final assembly.

How to Select the Right Smartphone Middle Frame Supplier

When sourcing a cell phone mid frame, buyers should evaluate more than unit price. Because the component interacts with many other parts inside the smartphone, manufacturing consistency can have a direct impact on downstream assembly.

A suitable supplier should be able to understand engineering drawings, identify critical dimensions, discuss material and manufacturing feasibility, develop customized tooling and maintain repeatable production.

Before requesting a quotation for a smartphone middle frame, buyers should clearly define the material, thickness, annual quantity, tolerance requirements, critical assembly areas and required surface treatment.

For complex projects, discussing the intended function of the mobile phone middle frame is also useful. Knowing whether a particular area is used for display support, PCB positioning, camera alignment, conductive contact or sealing allows manufacturing controls to focus on the dimensions that matter most.

Why Work With BaoCheng New Materials?

BaoCheng New Materials focuses on customized precision metal components rather than standard consumer replacement parts. For phone middle frame projects, production is developed according to customer drawings and actual assembly requirements.

Our approach is centered on manufacturability and repeatability. Instead of treating every dimension identically, we work to understand which areas affect assembly, positioning, structural support or other functional requirements.

For customized cell phone mid frame projects, customers can provide drawings or samples for technical evaluation. Material, thickness, geometry, tooling strategy, critical tolerances, flatness and surface requirements can then be reviewed according to the actual application.

This engineering-oriented approach is particularly important for a smartphone middle frame, because the component normally interfaces with multiple assemblies and even a small dimensional variation may influence the final device.

Conclusion

The mobile phone middle frame is an important structural platform inside a smartphone. Its function extends beyond simply holding components. It can influence display positioning, PCB installation, battery clearance, camera alignment, connector location, structural rigidity, thermal-component placement, grounding interfaces and overall enclosure assembly.

For this reason, successful phone middle frame manufacturing requires careful control of material thickness, flatness, dimensional accuracy, hole position, edge quality and consistency between production batches.

BaoCheng New Materials provides customized metal cell phone mid frame components according to customer drawings and project requirements. If you are developing a new smartphone, electronic device or precision internal structural component, drawings and technical requirements can be provided for manufacturability evaluation and customized production.

FAQ

What is a cell phone mid frame?

A cell phone mid frame is an internal structural component used to support and position major smartphone assemblies. Depending on the design, it may provide structural references for the display, PCB, battery, camera modules, connectors, shielding components and rear housing.

What is the difference between a smartphone middle frame and the outer phone frame?

A smartphone middle frame normally refers to a structural component located inside or between major smartphone assemblies, while the visible outer frame forms part of the external enclosure. The exact terminology varies between manufacturers, so the customer's drawing should always be used to determine the actual component structure.

What are the most important tolerances for a mobile phone middle frame?

The most important tolerances depend on the device design. Typical critical characteristics include overall flatness, hole position, opening position, assembly datums, component mounting areas and dimensions that control the relationship between the display, PCB, battery, camera and housing. It is usually unnecessary to apply the tightest tolerance to every feature of a mobile phone middle frame.

Why is flatness important for a phone middle frame?

Flatness influences how the phone middle frame interfaces with surrounding components. Excessive deformation can affect display installation, PCB clearance, adhesive areas, sealing structures or final housing assembly. Thin metal structures therefore require careful process control to minimize unwanted distortion.

Can a smartphone middle frame provide EMI shielding?

A metal smartphone middle frame may participate in grounding or EMI-control structures when specifically designed to do so, but it should not automatically be considered a complete EMI shield. Shielding performance depends on the entire device architecture, including material conductivity, contact design, shielding covers, grounding points and interface conditions.

Can the cell phone mid frame be customized according to our drawing?

Yes. BaoCheng New Materials manufactures customized cell phone mid frame components according to customer drawings, samples and technical requirements. Material, thickness, dimensions, tolerances, surface requirements and production quantities should be provided for project evaluation.

What information should I provide when requesting a quote?

For an accurate quotation, it is recommended to provide 2D drawings or 3D files, material specification, thickness, critical tolerances, flatness requirements, surface treatment requirements, prototype quantity and expected mass-production volume. If certain areas of the mobile phone middle frame have special assembly, grounding or sealing functions, these should also be identified.

Can you produce prototypes before mass production?

Prototype development can be discussed according to the specific phone middle frame design and manufacturing process. Prototype verification is useful for checking dimensions, assembly fit, hole positions, component clearance and other critical requirements before moving into larger-volume production.
